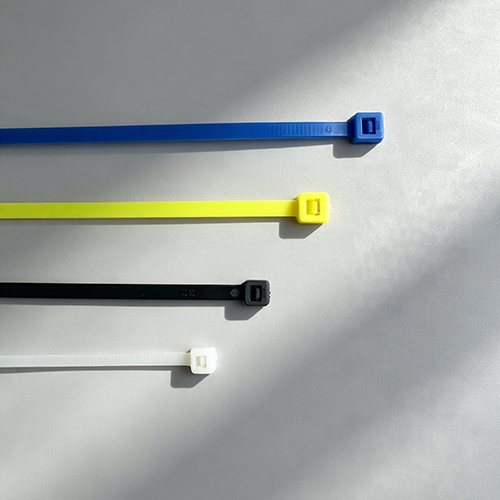

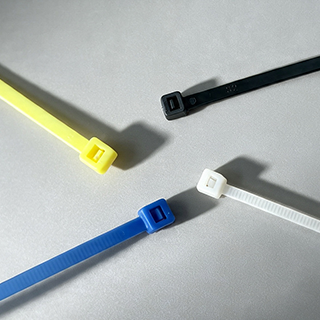

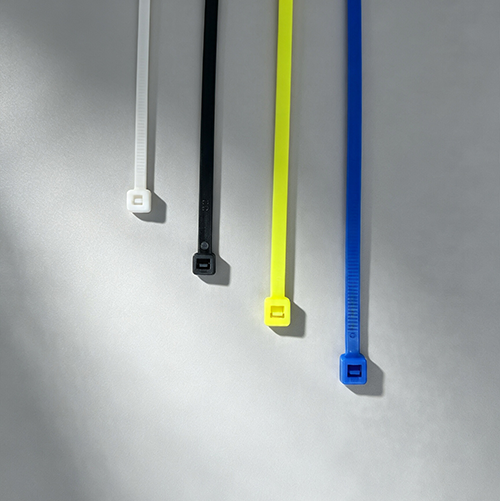

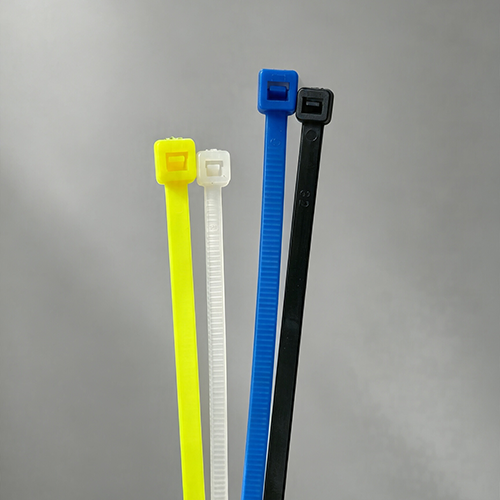

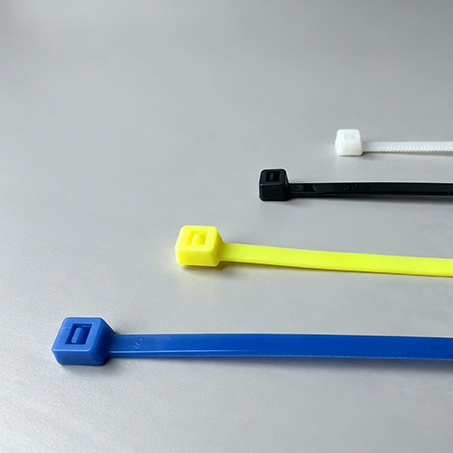

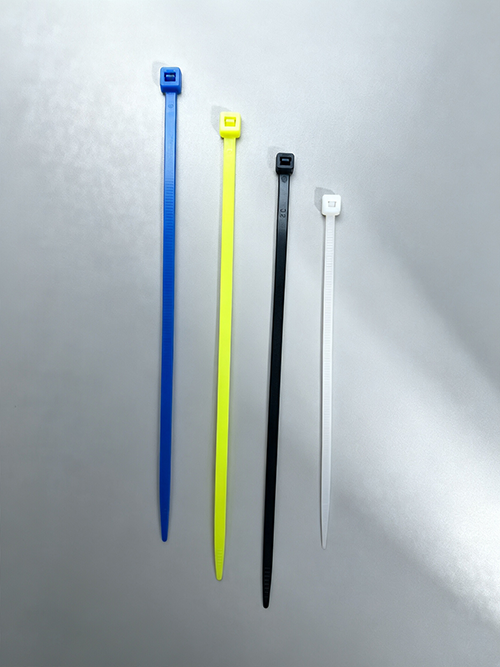

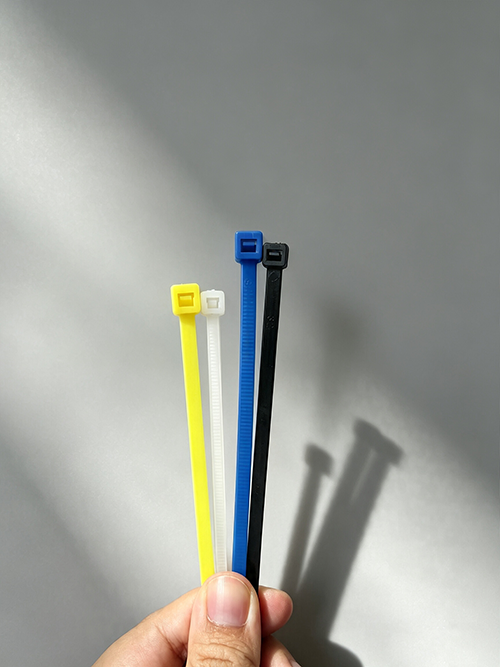

Teflon zip ties
Material：Made of UL approved (ETFE) PTFE material with a fire rating of 94V-0, it is acid resistant, corrosion-resistant, has good insulation properties, is not easily aged, and has strong load-bearing capacity;
Applicable temperature: -60℃~170℃；
Color: Blue, black, natural color, yellow, special colors support customization;
Applicable scenarios: Suitable for harsh working environments such as aviation, military industry, chemical corrosion, radiation, ultraviolet exposure, and extreme temperature environments, suitable for nuclear power facilities and chemical treatment plants.
Share
Related products
Product parameters
| Size | Wide | Long | Maximum binding range | Minimum ring assembly tension | ||||
| Size | Width | Length | Max.Bundle Dia. | Min.Loop Tesile Strength | ||||
| mm | inch | mm | inch | mm | inch | kgs | lbs | |
| 2.5*100 | 2.5 | 0.10 | 100 | 3.94 | 22 | 0.87 | 8.1 | 18 |
| 2.5*150 | 2.5 | 0.10 | 150 | 5.9 | 35 | 1.38 | 8.1 | 18 |
| 3.5*150 | 3.5 | 0.14 | 150 | 5.9 | 35 | 1.38 | 18.2 | 40 |
| 3.5*200 | 3.5 | 0.14 | 200 | 7.8 | 50 | 1.97 | 18.2 | 40 |
| 3.5*250 | 3.5 | 0.14 | 250 | 9.84 | 70 | 2.75 | 18.2 | 40 |
| 4.8*200 | 4.8 | 0.19 | 200 | 7.8 | 50 | 1.97 | 22.2 | 50 |
| 4.8*250 | 4.8 | 0.19 | 250 | 9.84 | 70 | 2.75 | 22.2 | 50 |
| 4.8*300 | 4.8 | 0.19 | 300 | 11.8 | 76 | 2.99 | 22.2 | 50 |
| 4.8*370 | 4.8 | 0.19 | 370 | 14.5 | 102 | 4.02 | 22.2 | 50 |
| 7.6*200 | 7.6 | 0.30 | 200 | 7.8 | 50 | 1.97 | 50 | 110 |
| 7.6*300 | 7.6 | 0.30 | 300 | 11.8 | 76 | 2.99 | 50 | 110 |
| 7.6*370 | 7.6 | 0.30 | 370 | 14.5 | 102 | 4.02 | 50 | 110 |
| 8.8*300 | 8.8 | 0.35 | 300 | 11.8 | 76 | 2.99 | 60 | 132 |
| 8.8*435 | 8.8 | 0.35 | 435 | 17.1 | 130 | 5.12 | 60 | 132 |
| 8.8*630 | 8.8 | 0.35 | 630 | 24.8 | 182 | 7.17 | 60 | 132 |
